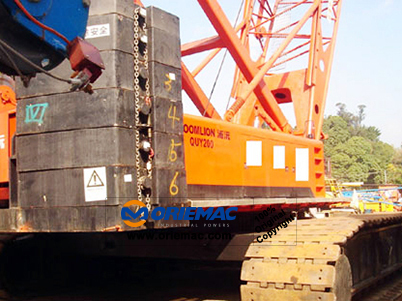

200ton Crawler Crane QUY200



Quick Details

Feature: Crawler Crane

Condition: New

Application: Construction

Brand Name: ZOOMLION

Model Number: QUY200

Certification: ISO,CE

Rated Loading Capacity: 200t

Rated Lifting Moment: 1994.3kN.M

Dimension: 10600*7200*3900mm

Max. Lifting Load: 200t

Max. Lifting Height: 83m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Span: 20

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

QUY200

Overall length

mm

10600

Overall width

mm

7200

Overall height

mm

3900

Weight





Total mass (with basic boom)

t

196

Maximum lifting weight of fixed jib

t

32

Power





Engine model



Engine rated power

kW/(r/min)

256/2100

Engine rated torque

N.m/(r/min)

1750/1200

Travel





Max. travel speed

km/h

0~0.98

Max. grade ability

%

30

Mean ground pressure

MPa

0.1

Main performance





Max. rated total lifting capacity

t

200

Max. lifting torque

kN.m

1994.3

Base boom

m

20

Fully extended boom

m

83

Fully extended boom+ jib

m

113

Boom elevating angle

°

Working speed





Max. swing speed

r/min

0~1.39

Max. single rope hoist speed

m/min

102

Max. single rope boom luffer speed

m/min

45
