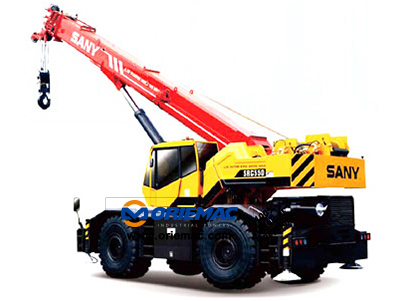

55ton Rough Terrain Crane SRC550



Quick Details

Feature: Rough Terrain Crane

Condition: New

Application: Construction

Brand Name: SANY

Model Number: SRC550

Certification: ISO,CE

Rated Loading Capacity: 55t

Rated Lifting Moment: 1810kN.M

Dimension: 13750×3300×3760mm

Max. Lifting Load: 55t

Max. Lifting Height: 35.8m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Span: 7.2/7.2m

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SRC550

Overall length

mm

13750

Overall width

mm

3300

Overall height

mm

3760

Weight





Total weight in travel

kg

40800

Front axle load

kg

21910

Rear axle load

kg

18890

Power





Engine model



Cummins QSB6.7

Engine rated power

kW/(r/min)

186/2500

Engine rated torque

N.m/(r/min)

987/1500

Travel





Max. travel speed

km/h

40

Min. turning diameter

m

13.4

Min. ground clearance

mm

350

Approach angle

°

23

Departure angle

°

20

Max. grade ability

%

75

Fuel consumption for 100km

L

60

Main performance





Max. rated total lifting capacity

t

55

Min. rated working radius

m

3

Turning radius at turntable tail

m



Max. lifting torque

kN.m

1810

Base boom

m

11.25

Fully extended boom

m

34.5

Fully extended boom+ jib

m

50.9

Longitudinal outrigger span

m

7.2

Lateral outrigger span

m

7.2

Working speed





Boom luffing time

s

75

Boomfull extension time

s

120

Max. swing speed

r/min

2.6

Max. speed of main winch (single rope) (no load)

m/min

150

Max. speed of aux. winch (single rope) (no load)

m/min

150
