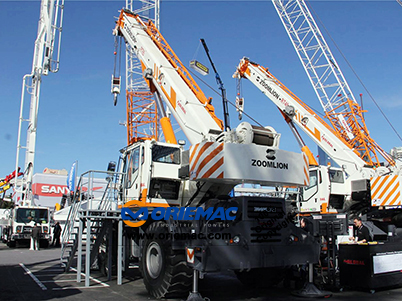

65ton Rough Terrain Crane RT65



Quick Details

Feature: Rough Terrain Crane

Condition: New

Application: Construction

Brand Name: ZOOMLION

Model Number: RT65

Certification: ISO,CE

Rated Loading Capacity: 65t

Rated Lifting Moment: 1991kN.M

Dimension: 13662×3300×3750mm

Max. Lifting Load: 65t

Max. Lifting Height: 62.2m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Span: 6.9/6.9m

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

RT65

Overall length

mm

13662

Overall width

mm

3300

Overall height

mm

3750

Weight





Total weight in travel

kg



Front axle load

kg



Rear axle load

kg



Power





Engine model





Engine rated power

kW/(r/min)



Engine rated torque

N.m/(r/min)



Travel





Max. travel speed

km/h



Min. turning diameter

m



Min. ground clearance

mm



Approach angle

°



Departure angle

°



Max. grade ability

%

70

Fuel consumption for 100km

L



Main performance





Max. rated total lifting capacity

t

65

Min. rated working radius

m

Turning radius at turntable tail

m



Max. lifting torque

kN.m

1991

Base boom

m

11.4

Fully extended boom

m

43

Fully extended boom+ jib

m



Longitudinal outrigger span

m

6.9

Lateral outrigger span

m

6.9

Working speed





Boom luffing time

s

56

Boomfull extension time

s

170

Max. swing speed

r/min

0~2.5

Max. speed of main winch (single rope) (no load)

m/min

150

Max. speed of aux. winch (single rope) (no load)

m/min
