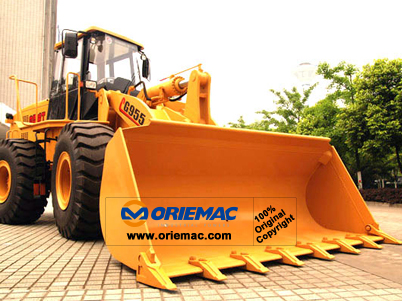

5.0ton Wheel Loader CG955



Quick Details

Feature: Wheel Loader

Condition: New

Application: Construction

Brand Name: CHENGGONG

Model Number: CG955

Certification: ISO,CE

Rated Loading Capacity: 5.0t

Bucket Capacity: 2.5-3.6m3

Dimension:  7699*3046*3460mm

Max. Lifting Load: 5.0t

Engine: WD10G220E11

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

CG955

Overall length

mm

7699

Overall width

mm

3046

Overall height

mm

3460

Weight





Total weight

kg

16300

Power





Engine model



WD10G220E11

Engine rated power

kW

162

Engine rated speed

r/min

2200

Travel





Max. travel speed

km/h

39

Main performance





Rated load

t

5.0

Bucket capacity

m3

2.5-3.6

Dumping clearance

m

3.123

Dumping reach

m

1.202

Max. breakout force

KN

180

Max. traction force

KN



Steering angle

0



Gradeability

0



Wheel base

m

2.8

Tread

m



Tyre size

m



Min. ground clearance

m



Min. turning radius

m

5.695

Working speed





Boom cycle time – raise

s



Total hydraulic cycle time

s

10.4
