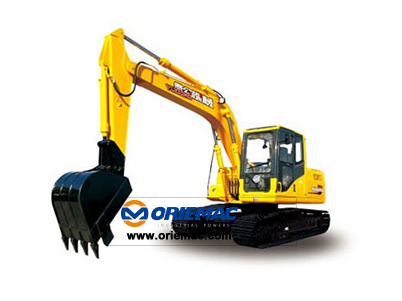

14.0ton Excavator WY150-8



Quick Details

Feature: Excavator

Condition: New

Application: Construction

Brand Name: YUGONG

Model Number: WY150-8

Certification: ISO,CE

Rated Loading Capacity: 14.0t

Bucket Capacity: 0.52m3

Dimension:  7890*2800*2760mm

Max. Lifting Load: 14.0t

Engine: YC6B125Z

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

WY150-8

Overall length (Transportation)

mm

7890

Overall width (Transportation)

mm

2800

Overall height (Transportation)

mm

2760

Track shoe length

mm



Track shoe width

mm

600

Weight





Total weight

kg

14000

Power





Engine model



YC6B125Z

Engine rated power

kW

92

Engine rated speed

r/min

2200

Travel





Travel speed

km/h

4.2/2.3

Main performance





Rated load

t

14

Bucket capacity

m3

0.52

Gradeability

0



Hydraulic system pressure

Mpa

30

Bucket digging force

KN



Arm digging force

KN



Max. tractive force

KN



Max. dumping clearance

m

6.4

Max. digging depth

m

5.5

Max. digging radius

m

8.4

Max. digging height

m

8.8

Back-end swing radius

m

2.4

Steering speed

r/min

14

Track gauge

m



Wheel base

m



Min. ground clearance

m
