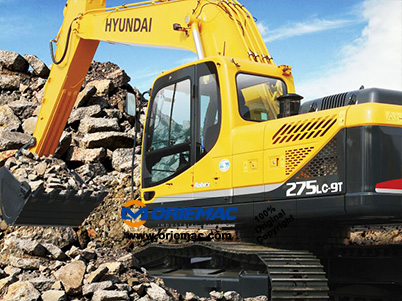

25.7ton Excavator R275LC-9T



Quick Details

Feature: Excavator

Condition: New

Application: Construction

Brand Name: HYUNDAI

Model Number: R275LC-9T

Certification: ISO,CE

Rated Loading Capacity: 25.7t

Bucket Capacity: 1.35m3

Dimension:  9930*3180*3280mm

Max. Lifting Load: 25.7t

Engine: C8.3-C

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

R275LC-9T

Overall length (Transportation)

mm

9930

Overall width (Transportation/operation)

mm

3180

Overall height (Transportation)

mm

3280

Track shoe length

mm

4640

Track shoe width

mm



Weight





Total weight

kg

25700

Power





Engine model



C8.3-C

Engine rated power

kW

196

Engine rated speed

r/min

1900

Travel





Travel speed

km/h

5.3/3.3

Main performance





Rated load

t

25.7

Bucket capacity

m3

1.35

Gradeability

0

35

Ground pressure

kpa

0.52

Bucket digging force

KN

178.36

Arm digging force

KN

124.46

Max. tractive force

KN

211.68

Max. dumping clearance

m

6.9

Max. digging depth

m

6.9

Max. digging radius

m

10.2

Min. swing radius

m

3.6

Steering speed

r/min

12

Track gauge

m

2.58

Caterpillar wheelbase

m



Min. ground clearance

m

0.48
