Quick Details Feature: Excavator Condition: New Application: Construction Brand Name: SANY Model Number: SY115C-9 Certification: ISO,CE Rated Loading Capacity: 12.4t Bucket Capacity: 0.22~0.7m3 Dimension: 7280*2550*2890mm Max. Lifting Load: 12.4t Engine: Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Color: Yellow After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 7~15 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit SY115C-9 Overall length mm 7280 Overall width mm 2550 Overall height mm 2890 Track shoe length mm 3360 Track shoe width mm Weight Total weight kg 12400 Power Engine model Engine rated power kW 70 Engine rated speed r/min 2050 Travel Travel speed km/h 5.5/3.5 Main performance Rated load t 12.4 Bucket capacity m3 0.22~0.7 Gradeability 0 70 Ground pressure kpa 41.6 Bucket digging force KN 90.6 Arm digging force KN 57.2 Max. tractive force KN Max. dumping clearance m 5.44 Max. digging depth m 5.19 Max. digging radius m 7.735 Min. swing radius m 2.88 Steering speed r/min 13.06 Track gauge m 1.99 Caterpillar wheelbase m Min. ground clearance m 0.425
Feature: Excavator
Condition: New
Application: Construction

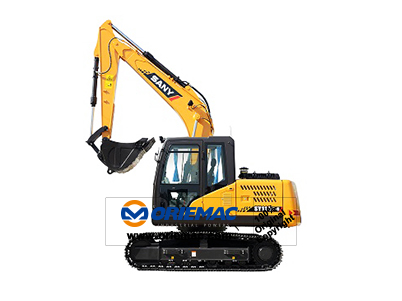

Brand Name: SANY
Model Number: SY115C-9
Certification: ISO,CE
Rated Loading Capacity: 12.4t
Bucket Capacity: 0.22~0.7m3
Dimension: 7280*2550*2890mm
Max. Lifting Load: 12.4t
Engine:
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Color: Yellow
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
7~15 days
Dimension Unit SY115C-9 Overall length mm 7280 Overall width mm 2550 Overall height mm 2890 Track shoe length mm 3360 Track shoe width mm Weight Total weight kg 12400 Power Engine model Engine rated power kW 70 Engine rated speed r/min 2050 Travel Travel speed km/h 5.5/3.5 Main performance Rated load t 12.4 Bucket capacity m3 0.22~0.7 Gradeability 0 70 Ground pressure kpa 41.6 Bucket digging force KN 90.6 Arm digging force KN 57.2 Max. tractive force KN Max. dumping clearance m 5.44 Max. digging depth m 5.19 Max. digging radius m 7.735 Min. swing radius m 2.88 Steering speed r/min 13.06 Track gauge m 1.99 Caterpillar wheelbase m Min. ground clearance m 0.425
Dimension
Unit
SY115C-9
Overall length
mm
7280
Overall width
2550
Overall height
2890
Track shoe length
3360
Track shoe width
Weight
Total weight
kg
12400
Power
Engine model
Engine rated power
kW
70
Engine rated speed
r/min
2050
Travel
Travel speed
km/h
5.5/3.5
Main performance
Rated load
t
12.4
Bucket capacity
m3
0.22~0.7
Gradeability
0
Ground pressure
kpa
41.6
Bucket digging force
KN
90.6
Arm digging force
57.2
Max. tractive force
Max. dumping clearance
m
5.44
Max. digging depth
5.19
Max. digging radius
7.735
Min. swing radius
2.88
Steering speed
13.06
Track gauge
1.99
Caterpillar wheelbase
Min. ground clearance
0.425
