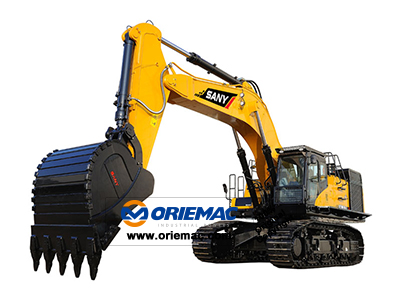

7.28ton Excavator SY75C-9



Quick Details

Feature: Excavator

Condition: New

Application: Construction

Brand Name: SANY

Model Number: SY75C-9

Certification: ISO,CE

Rated Loading Capacity: 7.28t

Bucket Capacity: 0.16~0.38m3

Dimension:  6120*2220*2720mm

Max. Lifting Load: 7.28t

Engine:

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SY75C-9

Overall length

mm

6120

Overall width

mm

2220

Overall height

mm

2720

Track shoe length

mm

2820

Track shoe width

mm



Weight





Total weight

kg

7280

Power





Engine model





Engine rated power

kW

40.9

Engine rated speed

r/min

2100

Travel





Travel speed

km/h

4.4/2.4

Main performance





Rated load

t

7.28

Bucket capacity

m3

0.16~0.38

Gradeability

0

70

Ground pressure

kpa

33

Bucket digging force

KN

56

Arm digging force

KN

38

Max. tractive force

KN



Max. dumping clearance

m

5.155

Max. digging depth

m

4.02

Max. digging radius

m

6.24

Min. swing radius

m

1.72

Steering speed

r/min

11.5

Track gauge

m

1.75

Caterpillar wheelbase

m

2.195

Min. ground clearance

m

0.38
