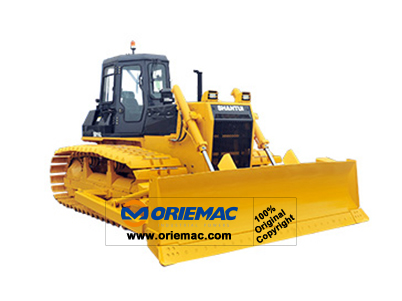

1.8ton Bulldozer SD16L



Quick Details

Feature: Bulldozer

Condition: New

Application: Construction

Brand Name: SHANTUI

Model Number: SD16L

Certification: ISO,CE

Rated Loading Capacity: 1.8t

Bucket Capacity: 3.8m3

Dimension:  5262*4150*3074mm

Max. Lifting Load: 1.8t

Engine: WD10G178E25 / SC11CB184G2B1

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SD16L

Overall length

mm

5262

Overall width

mm

4150

Overall height

mm

3074

Ground contact length of track

mm

2935

Track shoe width

mm

1100/950

Weight





Total weight

kg

18460

Power





Engine model



WD10G178E25 / SC11CB184G2B1

Engine rated power

kW

120

Engine rated speed

r/min

1850

Travel





Travel speed 1st (forward/backward)

km/h

0-3.29/0-4.28

Travel speed 2st (forward/backward)

km/h

0-5.28/0-7.59

Main performance





Operation weight

t

18.46

Blade capacity

m3

3.8

Gradeability

0

30

Ground pressure

kpa

0.027

Shovel blade width

m

4.15

Shovel blade height

m

0.96

Max. hoisting height

m

1.005

Max. digging depth

m

0.485

Max. gradient

m

0.4

Track gauge

m

2.3

Caterpillar track pitch

m

0.2032

Min. swing radius

m

4.7

Min. ground clearance

m

0.4
