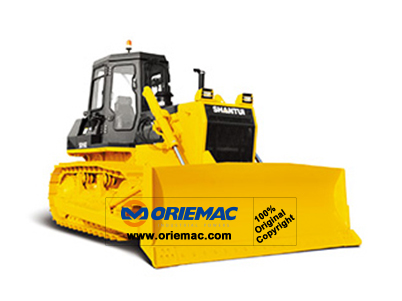

1.7ton Bulldozer SD16E



Quick Details

Feature: Bulldozer

Condition: New

Application: Construction

Brand Name: SHANTUI

Model Number: SD16E

Certification: ISO,CE

Rated Loading Capacity: 1.7t

Bucket Capacity: 4.3/4.5/5m3

Dimension:  5140*3388*3032mm

Max. Lifting Load: 1.7t

Engine: WD10G178E25 / SC11CB184G2B1

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SD16E

Overall length

mm

5140

Overall width

mm

3388

Overall height

mm

3032

Ground contact length of track

mm

2635

Track shoe width

mm

560

Weight





Total weight

kg

17340

Power





Engine model



WD10G178E25 / SC11CB184G2B1

Engine rated power

kW

120

Engine rated speed

r/min

1850

Travel





Travel speed 1st (forward/backward)

km/h

0-3.29/0-4.28

Travel speed 2st (forward/backward)

km/h

0-5.28/0-7.59

Main performance





Operation weight

t

17.34

Blade capacity

m3

4.3/4.5/5

Gradeability

0

30

Ground pressure

kpa

0.059

Shovel blade width

m

3.388

Shovel blade height

m

1.149

Max. hoisting height

m

1.095

Max. digging depth

m

0.54

Max. gradient

m

0.4

Track gauge

m

1.88

Caterpillar track pitch

m

0.2032

Min. swing radius

m

4.7

Min. ground clearance

m

0.4
