Quick Details Feature: Horizontal Direction Drill Condition: New Application: Construction Brand Name: XCMG Model Number: XZ320D Certification: ISO,GOST Max. Pull-push strength: 320kN Engine rated power: 160/2200kW/rpm Dimension: 7100*2300*2450mm Drilling rod length: 3m Engine Type: Diesel Place of Origin: Xuzhou, China (Mainland) Warranty: 1 year Pipe diameter: φ73mm After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 30 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit XZ320D Overall length mm 7100 Overall width mm 2300 Overall height mm 2450 Weight Total weight kg 12000 Engine parameters Engine model CUMMINS 6CTA8.3-C215 Engine rated power kW/rpm 160/2200 Main performance Max. Pull-push strength kN 320 Max. torque of power head r/min 0~140 Max. Backreaming diameter mm φ800 Drilling rod length (single) m 3 Pipe diameter mm φ73 Drilling angle 0 10~20 Mud flow rate (max) L/min 320 Mud pressure (max) bar 80

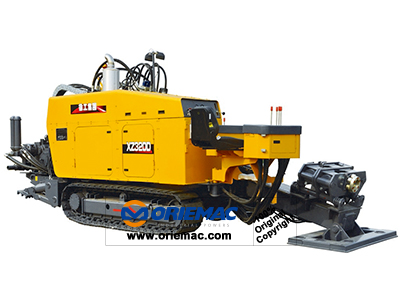

Feature: Horizontal Direction Drill
Condition: New
Application: Construction
Brand Name: XCMG
Model Number: XZ320D
Certification: ISO,GOST
Max. Pull-push strength: 320kN
Engine rated power: 160/2200kW/rpm
Dimension: 7100*2300*2450mm
Drilling rod length: 3m
Engine Type: Diesel
Place of Origin: Xuzhou, China (Mainland)
Warranty: 1 year
Pipe diameter: φ73mm
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
30 days
Dimension Unit XZ320D Overall length mm 7100 Overall width mm 2300 Overall height mm 2450 Weight Total weight kg 12000 Engine parameters Engine model CUMMINS 6CTA8.3-C215 Engine rated power kW/rpm 160/2200 Main performance Max. Pull-push strength kN 320 Max. torque of power head r/min 0~140 Max. Backreaming diameter mm φ800 Drilling rod length (single) m 3 Pipe diameter mm φ73 Drilling angle 0 10~20 Mud flow rate (max) L/min 320 Mud pressure (max) bar 80
Dimension
Unit
XZ320D
Overall length
mm
7100
Overall width
2300
Overall height
2450
Weight
Total weight
kg
12000
Engine parameters
Engine model
CUMMINS 6CTA8.3-C215
Engine rated power
kW/rpm
160/2200
Main performance
Max. Pull-push strength
kN
320
Max. torque of power head
r/min
0~140
Max. Backreaming diameter
φ800
Drilling rod length (single)
m
3
Pipe diameter
φ73
Drilling angle
0
10~20
Mud flow rate (max)
L/min
Mud pressure (max)
bar
80
