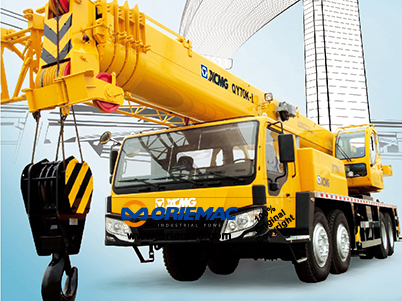

70ton Truck Crane QY70K-I



Quick Details

Feature: Truck Crane

Condition: New

Application: Construction

Brand Name: XCMG

Model Number: QY70K-I

Certification: ISO,CE

Rated Loading Capacity: 70t

Rated Lifting Moment: 2303kN.M

Dimension: 13930*2800*3575mm

Max. Lifting Load: 70t

Max. Lifting Height: 59.5m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Span: 6.1m

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. Four axles
2. Hangzhou (276KW) EURO III engine, full coverage board
3. Lengthened 5-section U-shape main booms 44.5m and two jibs 15m
4. Cooling and heating air conditioner, Five outriggers
5. Electric pilot control system ,PLC integrated controller and full head cab
6. Total dimension(mm): 13930*2800*3575
7. Max. operation weight(Kg): 43000

Technical Parameters

Dimension

Unit

QY70K-I

Overall length

mm

13930

Overall width

mm

2800

Overall height

mm

3575

Weight





Total weight in travel

kg

43000

Front axle load

kg

17000

Rear axle load

kg

26000

Power





Engine model



WD615.338

Engine rated power

kW/(r/min)

276/2200

Engine rated torque

N.m/(r/min)

1500/1400

Travel





Max. travel speed

km/h

80

Min. turning diameter

m

24

Min. ground clearance

mm

327

Approach angle

°

19

Departure angle

°

13

Max. grade ability

%

40

Fuel consumption for 100km

L

45

Main performance





Max. rated total lifting capacity

t

70

Min. rated working radius

m

3000

Turning radius at turntable tail

m

3.55

Max. lifting torque

kN.m

2303

Base boom

m

11.6

Fully extended boom

m

44.5

Fully extended boom+ jib

m

59.5

Longitudinal outrigger span

m

6.1

Lateral outrigger span

m

7.3

Working speed





Boom luffing time

s

60

Boomfull extension time

s

≤150

Max. swing speed

r/min

≥2.0

Max. speed of main winch (single rope) (no load)

m/min

≥130

Max. speed of aux. winch (single rope) (no load)

m/min

≥108
