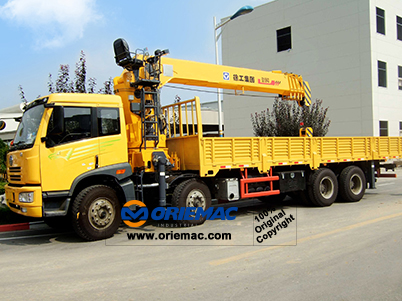

16 Tons Truck Mounted Cranes SQ16SK4Q



Quick Details

Feature: Truck Mounted Crane

Condition: New

Application: Construction

Brand Name: XCMG

Model Number: SQ16SK4Q

Certification: ISO,CE

Rated Loading Capacity: 16t

Rated Lifting Moment: 423.36kN.M

Recommend Power: 45kw

Max. Lifting Load: 16t

Max. Lifting Height: 18.5m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

20 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Main performance

Unit

SQ16SK4Q

Crane Weight

kg

6455

Max. rated total lifting capacity

kg

16000

Max. lifting torque

kN.m

423.36

Recommend Power

kw

41

Max Oil Flow of Hydraulic System

L/min

80

Max Pressure of Hydraulic System

MPa

28

Oil Tank Capacity

L

260

Rotation Angle

360°All Rotation

Installation Space

mm

1400

Choice of Chassis



BJ1317VNPJJ-S5, NXG1310D3ZEX, ext.

Lifting capability diagram





Working radius

m

2.7/5.6/8.5/11.5/14.5/18.5

Lifting capacity

kg

16000/7000/4200/3200/2200/1000
