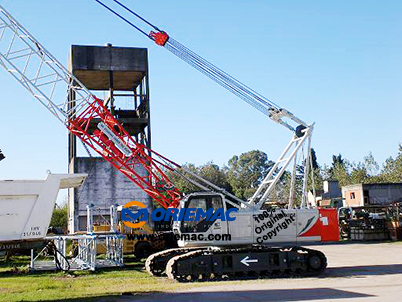

55ton Crawler Crane QUY50



Quick Details

Feature: Crawler Crane

Condition: New

Application: Construction

Brand Name: ZOOMLION

Model Number: QUY50

Certification: ISO,CE

Rated Loading Capacity: 55t

Rated Lifting Moment: 750kN.M

Dimension: 6800*3300*3020mm

Max. Lifting Load: 55t

Max. Lifting Height: 52m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: White

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

QUY50

Overall length

mm

6800

Overall width

mm

3300

Overall height

mm

3020

Weight





Total mass (with basic boom)

t

49

Balance weight

t

16.5

Power





Engine model



TBD226B-61G3

Engine rated power

kW/(r/min)

140/1900

Engine rated torque

N.m/(r/min)

830/1300

Travel





Max. travel speed

km/h

0~1.7

Max. grade ability

%

40

Mean ground pressure

MPa

0.066

Main performance





Max. rated total lifting capacity

t

55

Max. lifting torque

kN.m

750

Base boom

m

13

Fully extended boom

m

52

Fully extended boom+ jib

m

67

Boom elevating angle

°

30~81

Working speed





Max. swing speed

r/min

0~2.6

Max. single rope hoist speed

m/min

125

Max. single rope boom luffer speed

m/min

60
