Quick Details Feature: All Terrain Crane Condition: New Application: Construction Brand Name: SANY Model Number: SAC3000 Certification: ISO,CE Rated Loading Capacity: 300t Rated Lifting Moment: 9630kN.M Dimension: 18240×3000×4000mm Max. Lifting Load: 300t Max. Lifting Height: 80m Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Span: 8.95/8.5/5.6m After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit SAC3000 Overall length mm 18240 Overall width mm 3000 Overall height mm 4000 Weight Total weight in travel kg 72000 Front axle load kg 2750 Rear axle load kg 2490 Power Engine model Engine rated power kW/(r/min) 440 Engine rated torque N.m/(r/min) 2800 Travel Max. travel speed km/h 80 Min. turning diameter m ≤ 24 Min. ground clearance mm 330 Approach angle ° 16 Departure angle ° 18 Max. grade ability % 49 Fuel consumption for 100km L Main performance Max. rated total lifting capacity t 300 Min. rated working radius m Turning radius at turntable tail m 5735 Max. lifting torque kN.m 9630 Base boom m 15.4 Fully extended boom m 80 Fully extended boom+ jib m 122 Longitudinal outrigger span m 8.95 Lateral outrigger span m 8.5/5.6 Working speed Boom luffing time s Boomfull extension time s Max. swing speed r/min ≤1.2 Max. speed of main winch (single rope) (no load) m/min 130 Max. speed of aux. winch (single rope) (no load) m/min 130

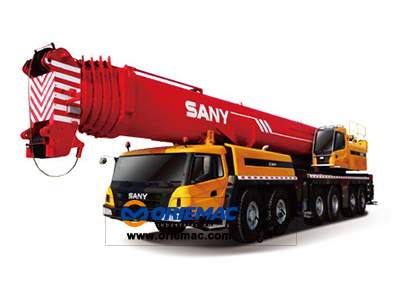

Feature: All Terrain Crane
Condition: New
Application: Construction
Brand Name: SANY
Model Number: SAC3000
Certification: ISO,CE
Rated Loading Capacity: 300t
Rated Lifting Moment: 9630kN.M
Dimension: 18240×3000×4000mm
Max. Lifting Load: 300t
Max. Lifting Height: 80m
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Span: 8.95/8.5/5.6m
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit SAC3000 Overall length mm 18240 Overall width mm 3000 Overall height mm 4000 Weight Total weight in travel kg 72000 Front axle load kg 2750 Rear axle load kg 2490 Power Engine model Engine rated power kW/(r/min) 440 Engine rated torque N.m/(r/min) 2800 Travel Max. travel speed km/h 80 Min. turning diameter m ≤ 24 Min. ground clearance mm 330 Approach angle ° 16 Departure angle ° 18 Max. grade ability % 49 Fuel consumption for 100km L Main performance Max. rated total lifting capacity t 300 Min. rated working radius m Turning radius at turntable tail m 5735 Max. lifting torque kN.m 9630 Base boom m 15.4 Fully extended boom m 80 Fully extended boom+ jib m 122 Longitudinal outrigger span m 8.95 Lateral outrigger span m 8.5/5.6 Working speed Boom luffing time s Boomfull extension time s Max. swing speed r/min ≤1.2 Max. speed of main winch (single rope) (no load) m/min 130 Max. speed of aux. winch (single rope) (no load) m/min 130
Dimension
Unit
SAC3000
Overall length
mm
18240
Overall width
3000
Overall height
4000
Weight
Total weight in travel
kg
72000
Front axle load
2750
Rear axle load
2490
Power
Engine model
Engine rated power
kW/(r/min)
440
Engine rated torque
N.m/(r/min)
2800
Travel
Max. travel speed
km/h
80
Min. turning diameter
m
≤ 24
Min. ground clearance
330
Approach angle
°
16
Departure angle
18
Max. grade ability
%
49
Fuel consumption for 100km
L
Main performance
Max. rated total lifting capacity
t
300
Min. rated working radius
Turning radius at turntable tail
5735
Max. lifting torque
kN.m
9630
Base boom
15.4
Fully extended boom
Fully extended boom+ jib
122
Longitudinal outrigger span
8.95
Lateral outrigger span
8.5/5.6
Working speed
Boom luffing time
s
Boomfull extension time
Max. swing speed
r/min
≤1.2
Max. speed of main winch (single rope) (no load)
m/min
130
Max. speed of aux. winch (single rope) (no load)
