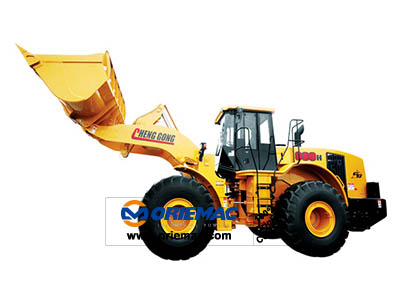

9.0ton Wheel Loader CG990H



Quick Details

Feature: Wheel Loader

Condition: New

Application: Construction

Brand Name: CHENGGONG

Model Number: CG990H

Certification: ISO,CE

Rated Loading Capacity: 9.0t

Bucket Capacity: 4.5-6.8m3

Dimension:  9459*3579*3821mm

Max. Lifting Load: 9.0t

Engine: QSM11

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

CG990H

Overall length

mm

9459

Overall width

mm

3579

Overall height

mm

3821

Weight





Total weight

kg

31500-32000

Power





Engine model



QSM11

Engine rated power

kW

250

Engine rated speed

r/min

2100

Travel





Max. travel speed

km/h

32

Main performance





Rated load

t

9.0

Bucket capacity

m3

4.5-6.8

Dumping clearance

m

3.313

Dumping reach

m

1.373

Max. breakout force

KN

260

Max. traction force

KN



Steering angle

0



Gradeability

0



Wheel base

m

3.6

Tread

m



Tyre size

m



Min. ground clearance

m



Min. turning radius

m

6.882

Working speed





Boom cycle time – raise

s

7.1

Total hydraulic cycle time

s

12.0
