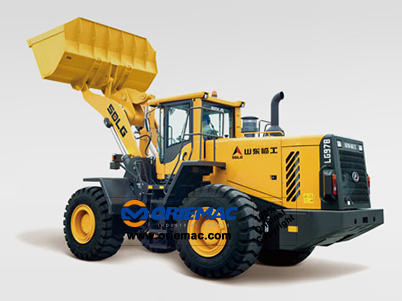

Quick Details Feature: Wheel Loader Condition: New Application: Construction Brand Name: SDLG Model Number: LG978 Certification: ISO,CE Rated Loading Capacity: 7.0t Bucket Capacity: 3.5~6.0m3 Dimension: 9213×3200×3665mm Max. Lifting Load: 7.0t Engine: WD12G310E221 Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Color: Yellow After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 7~15 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit LG978 Overall length mm 9213 Overall width mm 3200 Overall height mm> 3665 Weight Total weight kg 23640~23690 Power Engine model WD12G310E221 Engine rated power kW 226 Engine rated speed r/min 2100 Travel Travel speed 1st (forward/backward) km/h 0~6.6 Travel?speed 2st (forward/backward) km/h 0~12.4 Main performance Rated load t 7.0 Bucket capacity m3 3.5~6.0 Dumping clearance m 3.252~3.6 Dumping reach m 1.194~1.242 Max. breakout force KN ≥216 Max. traction force KN ≥216 Articulation angle 0 45 Gradeability 0 28 Wheel base m 3.55 Tread m 2.3 Tyre size m Min. ground clearance m 0.506 Min. turning radius m 6.876 Working speed Hydraulic cycle time – raise s Total hydraulic cycle time s ≤11
Feature: Wheel Loader
Condition: New
Application: Construction
Brand Name: SDLG
Model Number: LG978
Certification: ISO,CE
Rated Loading Capacity: 7.0t
Bucket Capacity: 3.5~6.0m3
Dimension: 9213×3200×3665mm
Max. Lifting Load: 7.0t
Engine: WD12G310E221
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Color: Yellow
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
7~15 days
Dimension Unit LG978 Overall length mm 9213 Overall width mm 3200 Overall height mm> 3665 Weight Total weight kg 23640~23690 Power Engine model WD12G310E221 Engine rated power kW 226 Engine rated speed r/min 2100 Travel Travel speed 1st (forward/backward) km/h 0~6.6 Travel?speed 2st (forward/backward) km/h 0~12.4 Main performance Rated load t 7.0 Bucket capacity m3 3.5~6.0 Dumping clearance m 3.252~3.6 Dumping reach m 1.194~1.242 Max. breakout force KN ≥216 Max. traction force KN ≥216 Articulation angle 0 45 Gradeability 0 28 Wheel base m 3.55 Tread m 2.3 Tyre size m Min. ground clearance m 0.506 Min. turning radius m 6.876 Working speed Hydraulic cycle time – raise s Total hydraulic cycle time s ≤11
Dimension
Unit
LG978
Overall length
mm
9213
Overall width
3200
Overall height
mm>
3665
Weight
Total weight
kg
23640~23690
Power
Engine model
WD12G310E221
Engine rated power
kW
226
Engine rated speed
r/min
2100
Travel
Travel speed 1st (forward/backward)
km/h
0~6.6
Travel?speed 2st (forward/backward)
0~12.4
Main performance
Rated load
t
7.0
Bucket capacity
m3
3.5~6.0
Dumping clearance
m
3.252~3.6
Dumping reach
1.194~1.242
Max. breakout force
KN
≥216
Max. traction force
Articulation angle
0
45
Gradeability
28
Wheel base
3.55
Tread
2.3
Tyre size
Min. ground clearance
0.506
Min. turning radius
6.876
Working speed
Hydraulic cycle time – raise
s
Total hydraulic cycle time
≤11
