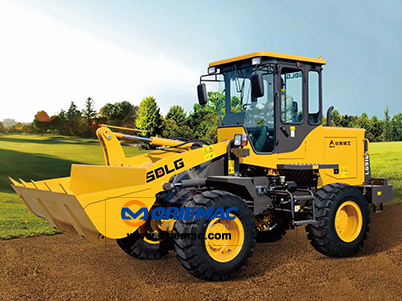

1.6ton Wheel Loader LG916D



Quick Details

Feature: Wheel Loader

Condition: New

Application: Construction

Brand Name: SDLG

Model Number: LG916D

Certification: ISO,CE

Rated Loading Capacity: 1.6t

Bucket Capacity: 0.6~1.0m3

Dimension: 5660×2080×2925mm

Max. Lifting Load: 1.6t

Engine: ZHBG44

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

LG916D

Overall length

mm

5660

Overall width

mm

2080

Overall height

mm>

2925

Weight





Total weight

kg

5000

Power





Engine model



ZHBG44

Engine rated power

kW

44

Engine rated speed

r/min

2300

Travel





Travel speed 1st (forward/backward)

km/h

0~10.3/0~10.1

Travel?speed 2st (forward/backward)

km/h

0~26.8/0~26.2

Main performance





Rated load

t

1.6

Bucket capacity

m3

0.6~1.0

Dumping clearance

m

2.45~2.84

Dumping reach

m

0.83~0.87

Max. breakout force

KN

≥44

Max. traction force

KN

42

Articulation angle

0

35

Gradeability

0

28

Wheel base (front/rear)

m

0.745/1.49

Tread

m

1.58

Min. ground clearance

m

0.33

Min. turning radius

m

4.66

Working speed





Hydraulic cycle time – raise

s



Total hydraulic cycle time

s

≤8.0
