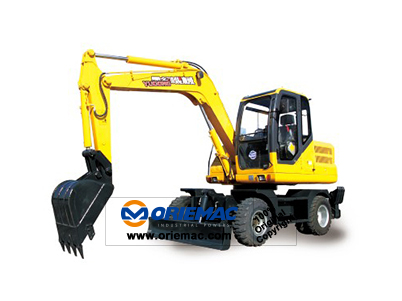

7.0ton Excavator WYL75X4-8J



Quick Details

Feature: Excavator

Condition: New

Application: Construction

Brand Name: YUGONG

Model Number: WYL75X4-8J

Certification: ISO,CE

Rated Loading Capacity: 7.0t

Bucket Capacity: 0.25m3

Dimension:  6200*2200*2850 mm

Max. Lifting Load: 7.0t

Engine: YTR4108

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

WYL75X4-8J

Overall length (Transportation)

mm

6200

Overall width (Transportation)

mm

2200

Overall height (Transportation)

mm

2850

Weight





Total weight

kg

6900

Power





Engine model



YTR4108

Engine rated power

kW

74.9

Engine rated speed

r/min

2200

Travel





Travel speed

km/h

35

Main performance





Rated load

t

7.0

Bucket capacity

m3

0.25

Gradeability

0



Hydraulic system pressure

Mpa

20

Bucket digging force

KN



Arm digging force

KN



Max. tractive force

KN



Max. dumping clearance

m

4.28

Max. digging depth

m

3.75

Max. digging radius

m

6.03

Max. digging height

m

6.3

Back-end swing radius

m

2.1

Steering speed

r/min

12

Wheel tread

m

1.59

Wheel base

m

2.135

Tire models



8.25-16

Min. ground clearance

m
