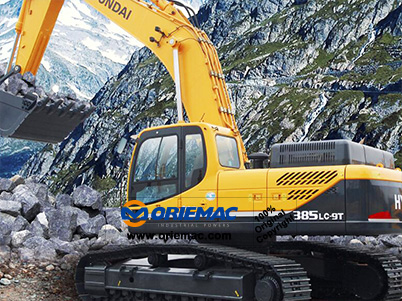

38.6ton Excavator R385LC-9T



Quick Details

Feature: Excavator

Condition: New

Application: Construction

Brand Name: HYUNDAI

Model Number: R385LC-9T

Certification: ISO,CE

Rated Loading Capacity: 38.6t

Bucket Capacity: 1.9m3

Dimension:  11240*3340*3570mm

Max. Lifting Load: 38.6t

Engine: QSM11-C

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

R385LC-9T

Overall length (Transportation)

mm

11240

Overall width (Transportation/operation)

mm

3340

Overall height (Transportation)

mm

3570

Track shoe length

mm

5280

Track shoe width

mm



Weight





Total weight

kg

38600

Power





Engine model



QSM11-C

Engine rated power

kW

263

Engine rated speed

r/min

1900

Travel





Travel speed

km/h

4.8/3.0

Main performance





Rated load

t

38.6

Bucket capacity

m3

1.9

Gradeability

0

35

Ground pressure

kpa

0.69

Bucket digging force

KN

228.34

Arm digging force

KN

176.4

Max. tractive force

KN

313.6

Max. dumping clearance

m

7.29

Max. digging depth

m

7.12

Max. digging radius

m

10.91

Min. swing radius

m

4.6

Steering speed

r/min

9.3

Track gauge

m

2.74

Caterpillar wheelbase

m



Min. ground clearance

m

0.55
