Quick Details Feature: Excavator Condition: New Application: Construction Brand Name: HYUNDAI Model Number: R225LC-7 Certification: ISO,CE Rated Loading Capacity: 22.1t Bucket Capacity: 1.05m3 Dimension: 9650*2990*3200mm Max. Lifting Load: 22.1t Engine: B5.9-C(6BTAA) Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Color: Yellow After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 7~15 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit R225LC-7 Overall length (Transportation) mm 9650 Overall width (Transportation/operation) mm 2990 Overall height (Transportation) mm 3200 Track shoe length mm 4440 Track shoe width mm Weight Total weight kg 22100 Power Engine model B5.9-C(6BTAA) Engine rated power kW 112 Engine rated speed r/min 1950 Travel Travel speed km/h 5.3/3.4 Main performance Rated load t 22.1 Bucket capacity m3 1.05 Gradeability 0 35 Ground pressure kpa 0.47 Bucket digging force KN 151.9 Arm digging force KN 117.6 Max. tractive force KN 206.78 Max. dumping clearance m 6.67 Max. digging depth m 6.74 Max. digging radius m 9.94 Min. swing radius m 3.64 Steering speed r/min 12.5 Track gauge m 2.39 Caterpillar wheelbase m Min. ground clearance m 0.48

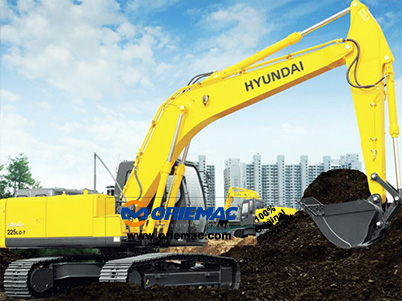

Feature: Excavator
Condition: New
Application: Construction
Brand Name: HYUNDAI
Model Number: R225LC-7
Certification: ISO,CE
Rated Loading Capacity: 22.1t
Bucket Capacity: 1.05m3
Dimension: 9650*2990*3200mm
Max. Lifting Load: 22.1t
Engine: B5.9-C(6BTAA)
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Color: Yellow
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
7~15 days
Dimension
Unit
R225LC-7
Overall length (Transportation)
mm
9650
Overall width (Transportation/operation)
2990
Overall height (Transportation)
3200
Track shoe length
4440
Track shoe width
Weight
Total weight
kg
22100
Power
Engine model
B5.9-C(6BTAA)
Engine rated power
kW
112
Engine rated speed
r/min
1950
Travel
Travel speed
km/h
5.3/3.4
Main performance
Rated load
t
22.1
Bucket capacity
m3
1.05
Gradeability
0
35
Ground pressure
kpa
0.47
Bucket digging force
KN
151.9
Arm digging force
117.6
Max. tractive force
206.78
Max. dumping clearance
m
6.67
Max. digging depth
6.74
Max. digging radius
9.94
Min. swing radius
3.64
Steering speed
12.5
Track gauge
2.39
Caterpillar wheelbase
Min. ground clearance
0.48
