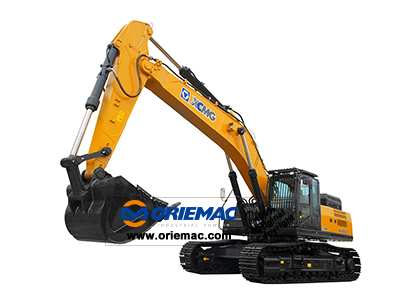

Quick Details Feature: Excavator Condition: New Application: Construction Brand Name: XCMG Model Number: XE500CA Certification: ISO,CE Rated Loading Capacity: 48.1t Bucket Capacity: 2.1~2.6m3 Dimension: 12032*3724*4165mm Max. Lifting Load: 48.1t Engine: QSM11 Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Color: Yellow After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 7~15 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit XE500CA Overall length mm 12302 Overall width mm 3742 Overall height mm 4165 Weight Total weight kg 48100 Power Engine model QSM11 Engine rated power kW 280 Engine rated speed r/min 2000 Travel Travel speed km/h 5.4/3.2 Main performance Rated load t 48.1 Bucket capacity m3 2.1~2.6 Dumping clearance m 7.409 Dumping reach m 11.26 Max. bucket digging force KN 288 Max. arm digging force KN 236 Steering angle 0 Gradeability 0 35 Gauge m 2.392/2.89 Tread m Tyre size m Min. ground clearance m 0.703 Min. tail swing radius m 3.665
Feature: Excavator
Condition: New
Application: Construction
Brand Name: XCMG
Model Number: XE500CA
Certification: ISO,CE
Rated Loading Capacity: 48.1t
Bucket Capacity: 2.1~2.6m3
Dimension: 12032*3724*4165mm
Max. Lifting Load: 48.1t
Engine: QSM11
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Color: Yellow
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
7~15 days
Dimension Unit XE500CA Overall length mm 12302 Overall width mm 3742 Overall height mm 4165 Weight Total weight kg 48100 Power Engine model QSM11 Engine rated power kW 280 Engine rated speed r/min 2000 Travel Travel speed km/h 5.4/3.2 Main performance Rated load t 48.1 Bucket capacity m3 2.1~2.6 Dumping clearance m 7.409 Dumping reach m 11.26 Max. bucket digging force KN 288 Max. arm digging force KN 236 Steering angle 0 Gradeability 0 35 Gauge m 2.392/2.89 Tread m Tyre size m Min. ground clearance m 0.703 Min. tail swing radius m 3.665
Dimension
Unit
XE500CA
Overall length
mm
12302
Overall width
3742
Overall height
4165
Weight
Total weight
kg
48100
Power
Engine model
QSM11
Engine rated power
kW
280
Engine rated speed
r/min
2000
Travel
Travel speed
km/h
5.4/3.2
Main performance
Rated load
t
48.1
Bucket capacity
m3
2.1~2.6
Dumping clearance
m
7.409
Dumping reach
11.26
Max. bucket digging force
KN
288
Max. arm digging force
236
Steering angle
0
Gradeability
35
Gauge
2.392/2.89
Tread
Tyre size
Min. ground clearance
0.703
Min. tail swing radius
3.665
