Quick Details Feature: Bulldozer Condition: New Application: Construction Brand Name: HBXG Model Number: T165-2 Certification: ISO,CE Gradeability: 30/250 Bucket Capacity: 4.6/4.9m3 Dimension: 5716*3762*3160mm Ground pressure: 66.7/67kpa Engine: WD10G178E25 Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Color: Yellow After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 7~15 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit T165-2 Overall length mm 5716/5447 Overall width mm 3762/3442 Overall height mm 3160/3160 Ground contact length of track mm Track shoe width mm 500 Weight Total weight kg 17120/17200 Power Engine model WD10G178E25 Engine rated power kW 121 Engine rated speed r/min 1850 Travel Travel speed 1st (forward/backward) km/h 0~3.9/0~4.8 Travel speed 2st (forward/backward) km/h 0~6.5/0~8.52 Main performance Operation weight t 17.12/17.2 Blade capacity m3 4.6/4.9 Gradeability 0 30/25 Ground pressure kpa 66.7/67 Shovel blade width m 3.442/3.762 Shovel blade height m Max. hoisting height m Max. digging depth m 0.42/0.377 Max. gradient m Track gauge m Caterpillar track pitch m 0.203 Min. swing radius m Min. ground clearance m 0.3525

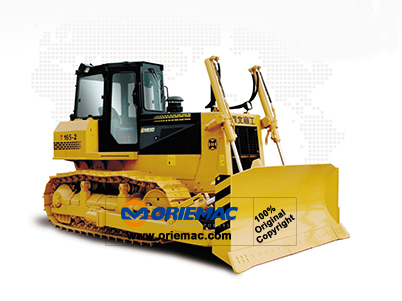

Feature: Bulldozer
Condition: New
Application: Construction
Brand Name: HBXG
Model Number: T165-2
Certification: ISO,CE
Gradeability: 30/250
Bucket Capacity: 4.6/4.9m3
Dimension: 5716*3762*3160mm
Ground pressure: 66.7/67kpa
Engine: WD10G178E25
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Color: Yellow
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
7~15 days
Dimension Unit T165-2 Overall length mm 5716/5447 Overall width mm 3762/3442 Overall height mm 3160/3160 Ground contact length of track mm Track shoe width mm 500 Weight Total weight kg 17120/17200 Power Engine model WD10G178E25 Engine rated power kW 121 Engine rated speed r/min 1850 Travel Travel speed 1st (forward/backward) km/h 0~3.9/0~4.8 Travel speed 2st (forward/backward) km/h 0~6.5/0~8.52 Main performance Operation weight t 17.12/17.2 Blade capacity m3 4.6/4.9 Gradeability 0 30/25 Ground pressure kpa 66.7/67 Shovel blade width m 3.442/3.762 Shovel blade height m Max. hoisting height m Max. digging depth m 0.42/0.377 Max. gradient m Track gauge m Caterpillar track pitch m 0.203 Min. swing radius m Min. ground clearance m 0.3525
Dimension
Unit
T165-2
Overall length
mm
5716/5447
Overall width
3762/3442
Overall height
3160/3160
Ground contact length of track
Track shoe width
500
Weight
Total weight
kg
17120/17200
Power
Engine model
WD10G178E25
Engine rated power
kW
121
Engine rated speed
r/min
1850
Travel
Travel speed 1st (forward/backward)
km/h
0~3.9/0~4.8
Travel speed 2st (forward/backward)
0~6.5/0~8.52
Main performance
Operation weight
t
17.12/17.2
Blade capacity
m3
4.6/4.9
Gradeability
0
30/25
Ground pressure
kpa
66.7/67
Shovel blade width
m
3.442/3.762
Shovel blade height
Max. hoisting height
Max. digging depth
0.42/0.377
Max. gradient
Track gauge
Caterpillar track pitch
0.203
Min. swing radius
Min. ground clearance
0.3525
