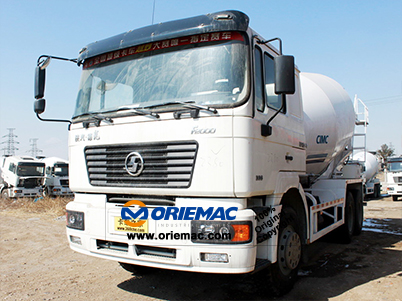

10 Cubic Concrete Mixer Truck F2000 DELONG



Quick Details

Feature: Concrete Mixer Truck

Condition: New

Application: Construction

Brand Name: SHACMAN

Model Number: F2000 DELONG

Certification: ISO,CE

Drive type: 6*4

Operating weight: 25000kg

Loading capacity: 10m3

Tyre: 12.00~20.00

Engine rated power: 336kw

Place of Origin: Shaanxi, China (Mainland)

Warranty: 1 year

Color: Optional Colour

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

30 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

F2000

Overall length

mm

9235

Overall width

mm

2500

Overall height

mm

3900

Weight





Kerb mass

kg

12700

Rated loading capacity

kg

12105

Total mass

kg

25000

Chassis parameters





Chassis model



SX5255GJBJR364

Engine model



WD12.336 EURO II

Engine rated power

kW

336

Rated output power

kW/hp

247/336

Main performance





Driving type


6*4

Max. speed

km/h

77

Min. turning diameter

m

19

Min. ground clearance

mm

314

Max. gradeability

%

30

Wheel base

mm

3775+1400

Overhang (front/rear)

mm

1525/1775

Torque

N.m rpm

1350/1300-1600

Displacement

L

11.596

Fuel tank capacity

L

380

Tyre

pc

12.00-20 (10+1)

Loading capacity

m3

10

Clutch



φ430 diaphragm spring

Gearbox/Transmission



12JS160T, 12 forward, 2re verse

Front axle



MAN 7.5T front axle

Drive axle



STR 13T*2 axle ratio 5.73

Steering



ZF technology
