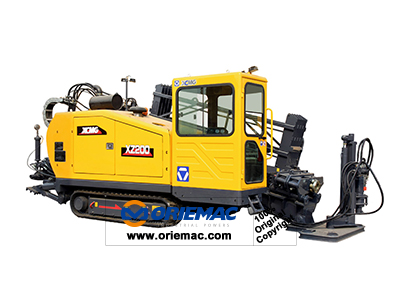

200kN Horizontal Direction Drill XZ200



Quick Details

Feature: Horizontal Direction Drill

Condition: New

Application: Construction

Brand Name: XCMG

Model Number: XZ200

Certification: ISO,GOST

Max. Pull-push strength: 200kN

Engine rated power: 160/2200kW/rpm

Dimension: 7100*2300*2450mm

Drilling rod length: 3m

Engine Type: Diesel

Place of Origin: Xuzhou, China (Mainland)

Warranty: 1 year

Pipe diameter: φ60mm

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

30 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

XZ200

Overall length

mm

6100

Overall width

mm

2020

Overall height

mm

2400

Weight





Total weight

kg

8500

Engine parameters





Engine model



Dongfeng CUMMINS 6BTAA5.9-C150

Engine rated power

kW/rpm

110/2200

Main performance





Max. Pull-push strength

kN

200

Max. torque of power head

r/min

0~28

Max. Backreaming diameter

mm

φ600

Drilling rod length (single)

m

3

Pipe diameter

mm

φ60

Drilling angle

0

10~22

Mud flow rate (max)

L/min

200

Mud pressure (max)

bar

80
