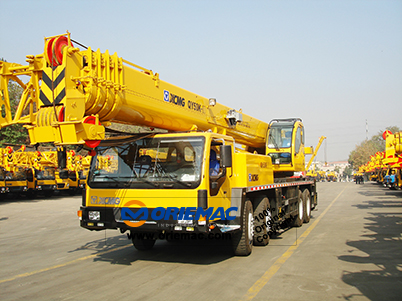

50ton Truck Crane QY50K-II



Quick Details

Feature: Truck Crane

Condition: New

Application: Construction

Brand Name: XCMG

Model Number: QY50K-II

Certification: ISO,CE

Rated Loading Capacity: 50t

Rated Lifting Moment: 1764kN.M

Dimension: 13750*2800*3520 kW/rpm

Max. Lifting Load: 50t

Max. Lifting Height: 57.7m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Span: 3/6m

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. Engine model: WD615.334
2. Fully extended boom+jib:57.7m
3. Hangzhou (247kw) EURO III
4. The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
5. The unique stretch and retract technique Newest Model XCMG rough terrain crane 50 ton avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
6. Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
7. Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
8. The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
9. The humanity design makes the cab and control cab more spacious, and easy to operate.
10. Six unique manufacturing technologies ensure the high quality.






Technical Parameters

Dimension

Unit

QY50K-II

Overall length

mm

13750

Overall width

mm

2800

Overall height

mm

3520

Weight





Total weight in travel

kg

41000

Front axle load

kg

15000

Rear axle load

kg

26000

Power





Engine model



WD615.334(domestic III)

Engine rated power

kW/(r/min)

247/2200

Engine rated torque

N.m/(r/min)

1350/1400

Travel





Max. travel speed

km/h

80

Min. turning diameter

m

24

Min. ground clearance

mm

291

Approach angle

°

17

Departure angle

°

11

Max. grade ability

%

40

Fuel consumption for 100km

L

45

Main performance





Max. rated total lifting capacity

t

50

Min. rated working radius

m

3

Turning radius at turntable tail

m

3.482

Max. lifting torque

kN.m

1764

Base boom

m

11.3

Fully extended boom

m

42.7

Fully extended boom+ jib

m

57.7

Longitudinal outrigger span

m

5.91

Lateral outrigger span

m

6.9

Working speed





Boom luffing time

s

88

Boomfull extension time

s

180

Max. swing speed

r/min

≥2.0

Max. speed of main winch (single rope) (no load)

m/min

≥110

Max. speed of aux. winch (single rope) (no load)

m/min

≥110
