Quick Details Feature: Truck Crane Condition: New Application: Construction Brand Name: SANY Model Number: STC750 Certification: ISO,CE Rated Loading Capacity: 75t Rated Lifting Moment: 2400kN.M Dimension: 14000×2750×3700mm Max. Lifting Load: 75t Max. Lifting Height: 12m Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Span: 6.1/7.6m After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit STC750 Overall length mm 14000 Overall width mm 2750 Overall height mm 3700 Weight Total weight in travel kg 45000 Front axle load kg 19000 Rear axle load kg 26000 Power Engine model WP10.336/SC9DK375Q3 Engine rated power kW/(r/min) 275/276 Engine rated torque N.m/(r/min) 1460/1200～1600，1500/1000～1500 Travel Max. travel speed km/h 80 Min. turning diameter m 23 Min. ground clearance mm 290 Approach angle ° ≥20 Departure angle ° ≥12 Max. grade ability % 40 Fuel consumption for 100km L ≤45 Main performance Max. rated total lifting capacity t 75 Min. rated working radius m Turning radius at turntable tail m Max. lifting torque kN.m 2400 Base boom m 12 Fully extended boom m 45 Fully extended boom+ jib m 61 Longitudinal outrigger span m 6.1 Lateral outrigger span m 7.6 Working speed Boom luffing time s 120/100 Boomfull extension time s 80/60 Max. swing speed r/min 0～2.4 Max. speed of main winch (single rope) (no load) m/min 130 Max. speed of aux. winch (single rope) (no load) m/min 130

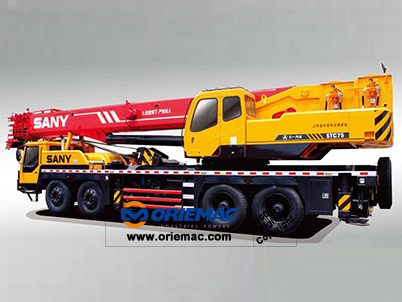

Feature: Truck Crane
Condition: New
Application: Construction
Brand Name: SANY
Model Number: STC750
Certification: ISO,CE
Rated Loading Capacity: 75t
Rated Lifting Moment: 2400kN.M
Dimension: 14000×2750×3700mm
Max. Lifting Load: 75t
Max. Lifting Height: 12m
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Span: 6.1/7.6m
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit STC750 Overall length mm 14000 Overall width mm 2750 Overall height mm 3700 Weight Total weight in travel kg 45000 Front axle load kg 19000 Rear axle load kg 26000 Power Engine model WP10.336/SC9DK375Q3 Engine rated power kW/(r/min) 275/276 Engine rated torque N.m/(r/min) 1460/1200～1600，1500/1000～1500 Travel Max. travel speed km/h 80 Min. turning diameter m 23 Min. ground clearance mm 290 Approach angle ° ≥20 Departure angle ° ≥12 Max. grade ability % 40 Fuel consumption for 100km L ≤45 Main performance Max. rated total lifting capacity t 75 Min. rated working radius m Turning radius at turntable tail m Max. lifting torque kN.m 2400 Base boom m 12 Fully extended boom m 45 Fully extended boom+ jib m 61 Longitudinal outrigger span m 6.1 Lateral outrigger span m 7.6 Working speed Boom luffing time s 120/100 Boomfull extension time s 80/60 Max. swing speed r/min 0～2.4 Max. speed of main winch (single rope) (no load) m/min 130 Max. speed of aux. winch (single rope) (no load) m/min 130
Dimension
Unit
STC750
Overall length
mm
14000
Overall width
2750
Overall height
3700
Weight
Total weight in travel
kg
45000
Front axle load
19000
Rear axle load
26000
Power
Engine model
WP10.336/SC9DK375Q3
Engine rated power
kW/(r/min)
275/276
Engine rated torque
N.m/(r/min)
1460/1200～1600，1500/1000～1500
Travel
Max. travel speed
km/h
80
Min. turning diameter
m
23
Min. ground clearance
290
Approach angle
°
≥20
Departure angle
≥12
Max. grade ability
%
40
Fuel consumption for 100km
L
≤45
Main performance
Max. rated total lifting capacity
t
75
Min. rated working radius
Turning radius at turntable tail
Max. lifting torque
kN.m
2400
Base boom
12
Fully extended boom
45
Fully extended boom+ jib
61
Longitudinal outrigger span
6.1
Lateral outrigger span
7.6
Working speed
Boom luffing time
s
120/100
Boomfull extension time
80/60
Max. swing speed
r/min
0～2.4
Max. speed of main winch (single rope) (no load)
m/min
130
Max. speed of aux. winch (single rope) (no load)
