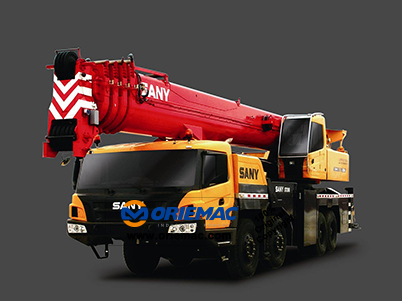

90ton Truck Crane STC900



Quick Details

Feature: Truck Crane

Condition: New

Application: Construction

Brand Name: SANY

Model Number: STC900

Certification: ISO,CE

Rated Loading Capacity: 90t

Rated Lifting Moment: 3500kN.M

Dimension: 15420×2800×4000mm

Max. Lifting Load: 90t

Max. Lifting Height: 13.2m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Span: 8.375/7.9m

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

STC900

Overall length

mm

15420

Overall width

mm

2800

Overall height

mm

4000

Weight





Total weight in travel

kg

46000

Front axle load

kg

20000

Rear axle load

kg

26000

Power





Engine model





Engine rated power

kW/(r/min)

275

Engine rated torque

N.m/(r/min)

2100

Travel





Max. travel speed

km/h

80

Min. turning diameter

m

24

Min. ground clearance

mm

320

Approach angle

°

21

Departure angle

°

13

Max. grade ability

%

33

Fuel consumption for 100km

L

≤60

Main performance





Max. rated total lifting capacity

t

90

Min. rated working radius

m

Turning radius at turntable tail

m



Max. lifting torque

kN.m

3500

Base boom

m

13.2

Fully extended boom

m

49.5

Fully extended boom+ jib

m

67.4

Longitudinal outrigger span

m

8.375

Lateral outrigger span

m

7.9

Working speed





Boom luffing time

s



Boomfull extension time

s



Max. swing speed

r/min



Max. speed of main winch (single rope) (no load)

m/min



Max. speed of aux. winch (single rope) (no load)

m/min
