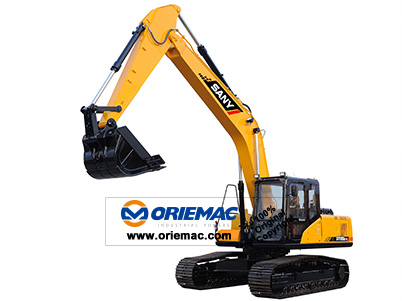

20.7ton Excavator SY195C-9



Quick Details

Feature: Excavator

Condition: New

Application: Construction

Brand Name: SANY

Model Number: SY195C-9

Certification: ISO,CE

Rated Loading Capacity: 20.7t

Bucket Capacity: 0.83~1.0m3

Dimension:  9560*2800*3250mm

Max. Lifting Load: 20.7t

Engine:

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SY195C-9

Overall length

mm

9560

Overall width

mm

2800

Overall height

mm

3250

Track shoe length

mm

4060

Track shoe width

mm



Weight





Total weight

kg

20700

Power





Engine model





Engine rated power

kW

114

Engine rated speed

r/min

2050

Travel





Travel speed

km/h

5.4/3.3

Main performance





Rated load

t

20.7

Bucket capacity

m3

0.83~1.0

Gradeability

0

70

Ground pressure

kpa

47.3

Bucket digging force

KN

135

Arm digging force

KN

109

Max. tractive force

KN



Max. dumping clearance

m

6.49

Max. digging depth

m

6.41

Max. digging radius

m

9.74

Min. swing radius

m

3.755

Steering speed

r/min

11

Track gauge

m

2.2

Caterpillar wheelbase

m



Min. ground clearance

m

0.44
