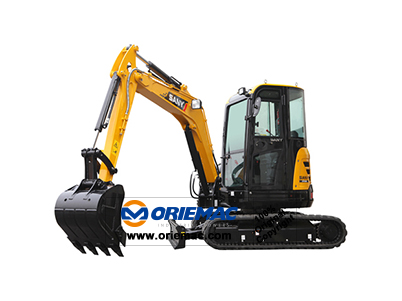

3.78ton Excavator SY35U



Quick Details

Feature: Excavator

Condition: New

Application: Construction

Brand Name: SANY

Model Number: SY35U

Certification: ISO,CE

Rated Loading Capacity: 3.78t

Bucket Capacity: 0.12m3

Dimension:  4915*1720*2515mm

Max. Lifting Load: 3.78t

Engine:

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SY35U

Overall length

mm

4915

Overall width

mm

1720

Overall height

mm

2515

Track shoe length

mm

2155

Track shoe width

mm



Weight





Total weight

kg

3780

Power





Engine model





Engine rated power

kW

20.4

Engine rated speed

r/min

2200

Travel





Travel speed

km/h

4.4/2.4

Main performance





Rated load

t

3.78

Bucket capacity

m3

0.12

Gradeability

0

58

Ground pressure

kpa

32

Bucket digging force

KN

30.4

Arm digging force

KN

18.2

Max. tractive force

KN



Max. dumping clearance

m

3.46

Max. digging depth

m

3.105

Max. digging radius

m

5.465

Min. swing radius

m

2.475

Steering speed

r/min

9

Track gauge

m

1.42

Caterpillar wheelbase

m



Min. ground clearance

m

0.295
