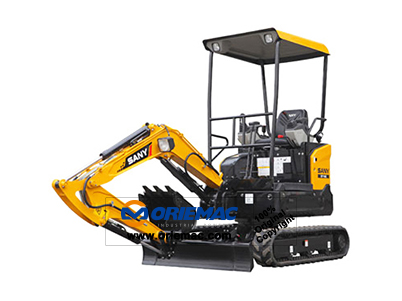

Quick Details
|
Feature: Excavator
|
Condition: New
|
Application: Construction
|
|
Brand Name: SANY
|
Model Number: SY16C
|
Certification: ISO,CE
|
|
Rated Loading Capacity: 1.75t
|
Bucket Capacity: 0.04m3
|
Dimension: 3575*980/1350*2420mm
|
|
Max. Lifting Load: 1.75t
|
Engine:
|
Place of Origin: Jiangsu, China (Mainland)
|
|
Warranty: 1 year
|
Color: Yellow
|
After-sales Service Provided: Engineers available to service machinery overseas
|
Packaging & Delivery
|
Packaging Details:
|
Nude package Shipped by Ro-Ro or Bulk shipment
|
|
Delivery Detail:
|
7~15 days
|
Main Features
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
|
Technical Parameters
|
Dimension
|
Unit
|
SY16C
|
|
Overall length (Transportation)
|
mm
|
3575
|
|
Overall width (Transportation/operation)
|
mm
|
980/1350
|
|
Overall height (Transportation)
|
mm
|
2420
|
|
Track shoe length
|
mm
|
1585
|
|
Track shoe width
|
mm
|
|
|
Weight
|
|
|
|
Total weight
|
kg
|
1750
|
|
Power
|
|
|
|
Engine model
|
|
|
|
Engine rated power
|
kW
|
10.3
|
|
Engine rated speed
|
r/min
|
2200
|
|
Travel
|
|
|
|
Travel speed
|
km/h
|
3.7/2.1
|
|
Main performance
|
|
|
|
Rated load
|
t
|
1.75
|
|
Bucket capacity
|
m3
|
0.04
|
|
Gradeability
|
0
|
58
|
|
Ground pressure
|
kpa
|
29.1
|
|
Bucket digging force
|
KN
|
15.2
|
|
Arm digging force
|
KN
|
9.2
|
|
Max. tractive force
|
KN
|
|
|
Max. dumping clearance
|
m
|
2.635
|
|
Max. digging depth
|
m
|
2.36
|
|
Max. digging radius
|
m
|
2.745
|
|
Min. swing radius
|
m
|
1.655
|
|
Steering speed
|
r/min
|
10
|
|
Track gauge
|
m
|
0.75/1.12
|
|
Caterpillar wheelbase
|
m
|
|
|
Min. ground clearance
|
m
|
0.18
|
