Quick Details Feature: Wheel Loader Condition: New Application: Construction Brand Name: SHANTUI Model Number: SL80W Certification: ISO,CE Rated Loading Capacity: 8t Bucket Capacity: 4.5m3 Dimension: 9649×3340×3718mm Max. Lifting Load: 8t Engine: WD12G336E211 Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Color: Yellow After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 7~15 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit SL80W Overall length mm 9649 Overall width mm 3340 Overall height mm> 3718 Weight Total weight kg 29500 Power Engine model WD12G336E211 Engine rated power kW 247 Engine rated speed r/min 2200 Travel Travel speed 1st (forward/backward) km/h 0~6.85/0~6.6 Travel?speed 2st (forward/backward) km/h 0~10.5/0~18 Main performance Rated load t 8 Bucket capacity m3 4.5 Dumping clearance m 3.465 Dumping reach m 1.426 Max. breakout force KN 260 Max. traction force KN 260 Articulation angle 0 Gradeability 0 Wheel base m 3.74 Tread m 2.59 Min. ground clearance m Min. turning radius m 7.484 Working speed Hydraulic cycle time – raise s Total hydraulic cycle time s

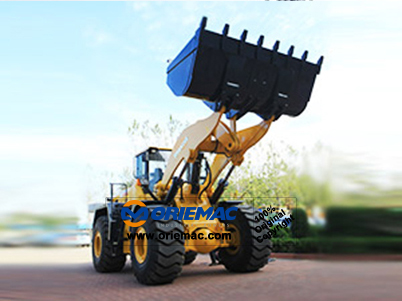

Feature: Wheel Loader
Condition: New
Application: Construction
Brand Name: SHANTUI
Model Number: SL80W
Certification: ISO,CE
Rated Loading Capacity: 8t
Bucket Capacity: 4.5m3
Dimension: 9649×3340×3718mm
Max. Lifting Load: 8t
Engine: WD12G336E211
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Color: Yellow
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
7~15 days
Dimension
Unit
SL80W
Overall length
mm
9649
Overall width
3340
Overall height
mm>
3718
Weight
Total weight
kg
29500
Power
Engine model
WD12G336E211
Engine rated power
kW
247
Engine rated speed
r/min
2200
Travel
Travel speed 1st (forward/backward)
km/h
0~6.85/0~6.6
Travel?speed 2st (forward/backward)
0~10.5/0~18
Main performance
Rated load
t
8
Bucket capacity
m3
4.5
Dumping clearance
m
3.465
Dumping reach
1.426
Max. breakout force
KN
260
Max. traction force
Articulation angle
0
Gradeability
Wheel base
3.74
Tread
2.59
Min. ground clearance
Min. turning radius
7.484
Working speed
Hydraulic cycle time – raise
s
Total hydraulic cycle time
